Choosing the Right Weighbridge Foundation: A Field Engineer's Take

After more than a decade in the truck scale business, I can tell you the question I get asked most isn't "how accurate is this scale?" It's "which foundation do I actually need for my site?" Most buyers spend their energy comparing load cells and indicator brands, and treat the foundation as an afterthought. Two or three years later, the scale starts settling, the deck binds, readings drift — and when you dig into it (sometimes literally), the culprit is almost never the load cells. It's the foundation.

I work as an engineer with Fujian Fangda Weighbridge, and over the years we've poured foundations for logistics yards, quarries, grain terminals, and everything in between. Here's the plain-language version of how we walk clients through foundation selection — fewer buzzwords, more of what we've actually learned on site.

Pier Foundations: Lowest Cost, But Picky About Soil

Pier foundations use isolated concrete piers under each load-bearing point rather than one continuous slab. Less concrete, faster install, lower upfront cost — which is why they're popular in warmer regions with decent, well-compacted soil.

The catch is that they demand a solid, well-compacted base. Loose or high-moisture soil leads to uneven settlement, and once one pier settles differently than its neighbors, the deck tilts and your readings start drifting long before anyone notices a visible problem.

In colder climates, this changes further: you need deep pier variants that extend below the local frost line. Skip that step and you're looking at freeze-thaw cycles cracking and heaving the foundation within a few winters. On projects we've done in colder northern regions, foundation depth was set directly from local frost-depth data — never a rough estimate.

Bottom line: piers work well when budget and timeline are tight and soil conditions are genuinely good. But that "genuinely good" part needs a real soil survey, not a guess.

Beam-Slab (Full-Slab) Foundations: Built for Stability

A beam-slab foundation — sometimes just called a full-slab foundation — is a continuous reinforced concrete slab poured under the entire weighbridge deck, often with integral beams for added rigidity. It spreads the load evenly and largely eliminates the localized settlement issues you can get with piers.

The trade-off is cost and construction time. This design also needs adequate soil bearing pressure — typically at least around 1,500 psf — so it's not a foundation you can just default to without checking site conditions against your structural design.

We generally point clients toward this option for high-throughput sites: logistics hubs, industrial parks, anywhere trucks are crossing the scale constantly and downtime means real money. When we've worked with large aggregate and coal handling operations, the recommendation is almost always full-slab — yes, it costs more upfront, but it typically means a decade or more without foundation-related headaches.

Pit (In-Ground) Foundations: When Height Matters

A pit foundation sets the weighbridge deck flush with (or close to) ground level, with a concrete pit beneath housing the load cells and providing access for maintenance. Pit depth usually runs 2 to 6 feet, depending on access requirements and local code.

The obvious advantage is the low profile — no ramp for trucks to climb, which matters a lot on tight sites or anywhere the scale needs to blend seamlessly into an existing roadway, like inside a plant yard or near a fuel station. The downside is equally obvious: more excavation, more concrete, more labor. It's the most expensive of the three options, and drainage becomes a real concern — a pit that collects standing water will corrode components and shorten load cell life fast if it isn't addressed properly.

What Actually Drives the Decision

Budget aside, foundation selection really comes down to a handful of hard factors:

1. Frost depth– Non-negotiable in colder regions. Underestimate it and you'll be dealing with heave damage by the second winter.

2. Drainage– Especially critical for pit foundations, where standing water is a long-term liability, not a minor nuisance.

3. Soil compaction and bearing capacity– Get an actual geotechnical survey. Don't estimate this one.

4. Site slope– Sloped sites need extra design attention for leveling and drainage direction.

5. Long-term maintenance access– How easily can technicians get to the load cells later? This affects both lifespan and ongoing maintenance cost.

The thing about foundations is that they're invisible once the job is done — but they're the part that punishes shortcuts the hardest. Any corner cut at the design or construction stage tends to resurface later as settlement, binding, or measurement drift, and by then the cost of fixing it is usually several times what you'd have spent getting it right the first time.

At Fujian Fangda Weighbridge, our process always starts with an actual site survey before any drawings get finalized — we don't run a one-size-fits-all template across different soil types, climates, and use cases. Every site is different, and the foundation plan should reflect that, not the other way around.

If you're speccing a new installation, or your existing scale is already showing signs of settling or binding, happy to talk through your site conditions. More often than not it's a mix of foundation selection and construction execution — and separating the two is usually the first step to actually fixing it.

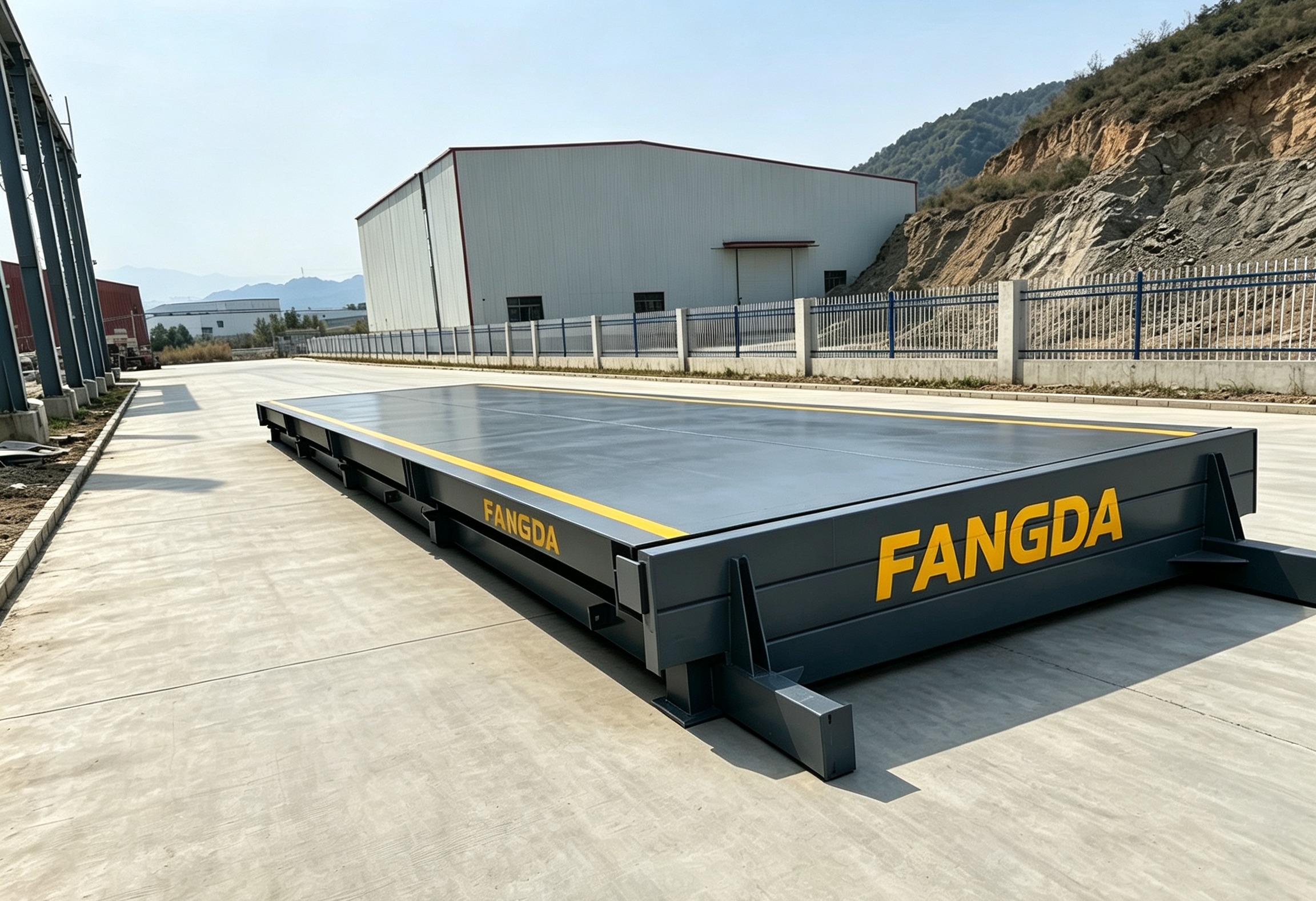

100-ton Weighbridge & Truck Scale
