Electronic Weighbridge 30ton-80ton
Electronic Weighbridge
The electronic weighbridge（www.fjfangda.com） is a high - precision weighing device designed for accurately measuring the weight of trucks and their loads. It plays a crucial role in various industries, including logistics, transportation, and manufacturing.
Fujian Fangda Electronic Weighbridge General Parameter Table
Version-SCS,Sensor-C3/C6,Steel material：Q235B | |||
Display Mode | LED | Protection Grade | IP68 |
Weighing Method | Static weighing | structure | U-shaped steel |
operational environment | Non-explosion-proof type | Lightning Protection Design | With lightning protection |
power | AC220/Hz50 | Delivery Time | Within 15-30days |
Weighing Range | 30ton-80ton | Panel thickness | 8mm~14mm |
Transport Packaging | Load with 20-foot or 40-foot standard containers | Certification Description | SCS, ISO9001: 2005 |
brand | Fangda | Production Capacity | 1000 Sets/Sets Per Year |
HS Code | 8423891090 | Source | Zhang Zhou, Fujian, China |
Custom Size： | 2.5*5m,2.5*6m,3*5m,3*12m,3*16m,3*18m,3*24m，and others, which can be customized according to actual needs. | ||
Weighing Range and Dimension Specifications
Maximum Tonnage:：The maximum load-bearing tonnage required is 80 tons
Platform Size: The length and width specification of the weighbridge suitable for the maximum vehicle is 3.4*16m
Installation Methods and Site Conditions
Installation Type: Pitless and Shallow Pit
Basic types: conventional concrete foundation, quickly installable prefabricated steel structure foundation, or foundation-free solution
Application Environment: The weighbridge is suitable for harsh working conditions (such as large mining areas in Africa, humid and dusty environments).
Weighbridge sensors can choose IP68 grade load cells or special anti-corrosion configuration.
Operation Usage and Software Requirements
Weighing Frequency: Suitable for high-flow and 24-hour all-weather industrial weighing applications
Automation Requirement: Supports fully unattended operation mode without manual intervention, integrated with radio frequency identification/license plate recognition technology
System Integration: The weighbridge can be connected to the existing ERP system via dedicated network access functions
Technical Parameter Requirements
Accuracy Grade: The standard configuration complies with OIML R76 Class III accuracy, and the accuracy grade can be upgraded according to local trade settlement scenarios.

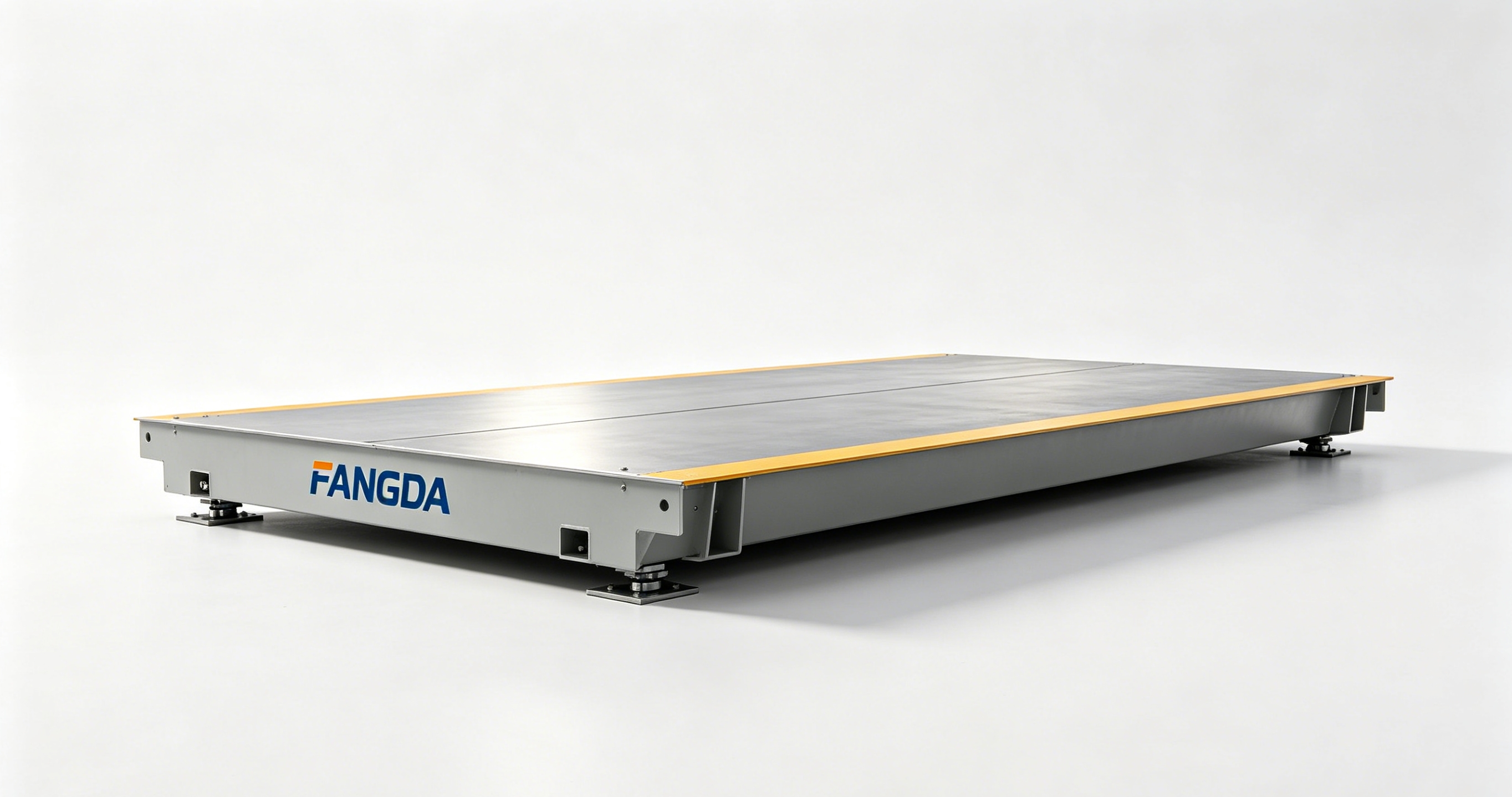

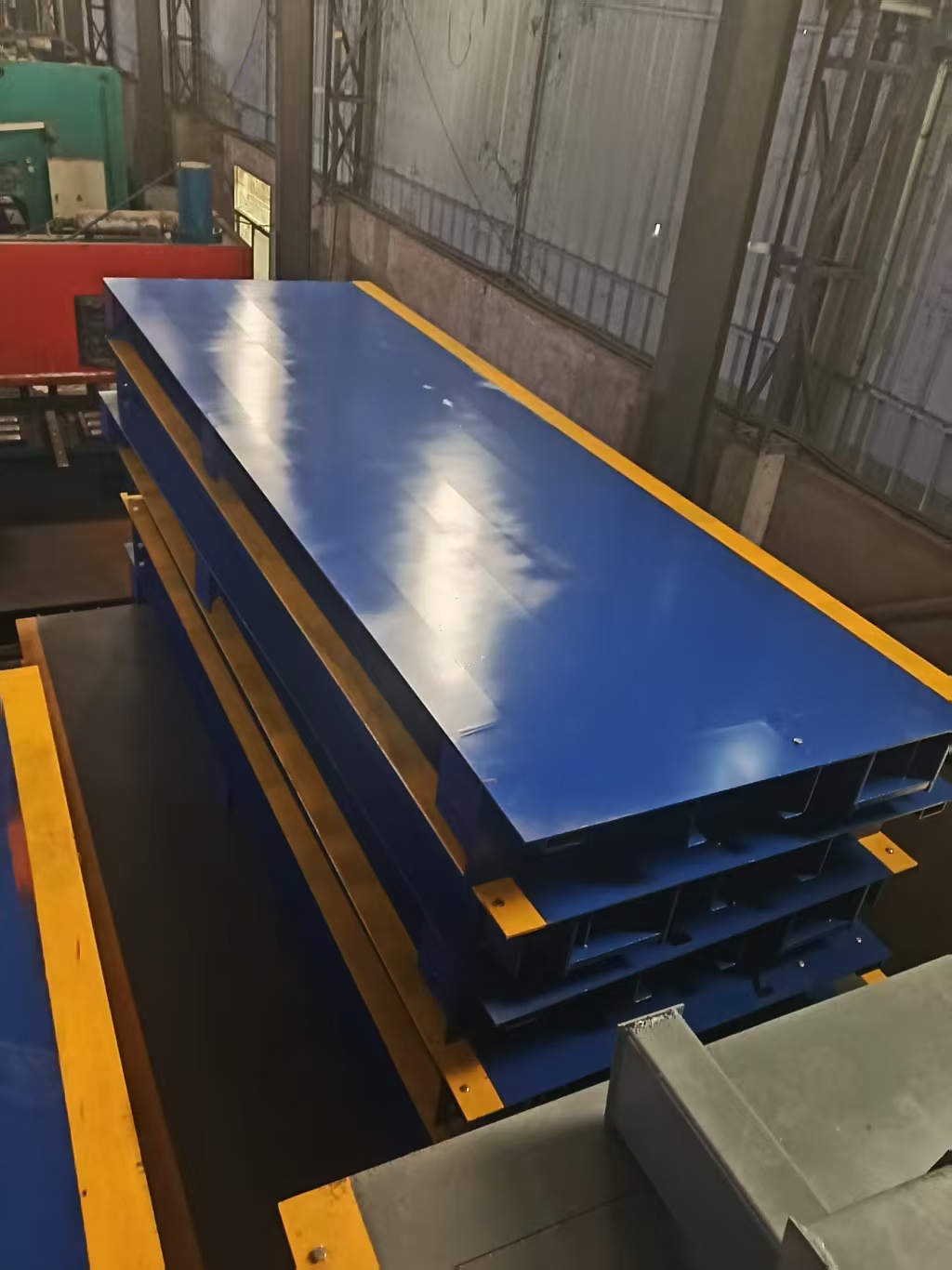

Main Beam Type: High-strength U-beam structure
Summary of Recommended Model Selection
Mining and Heavy Industry Scenarios: Fujian Fangda U-beam SCS Series Weighbridge (30 tons - 200 tons, excellent impact resistance).

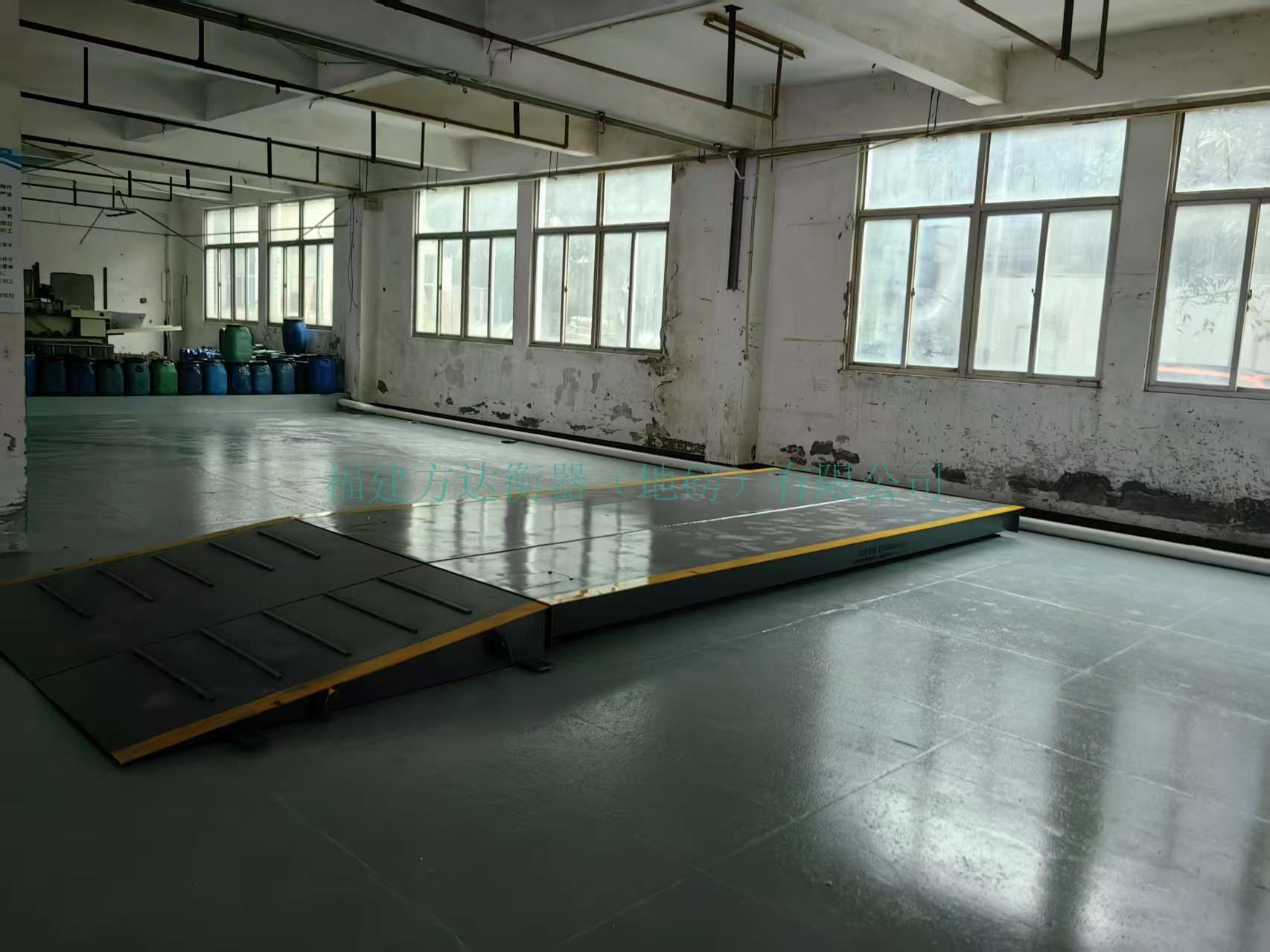

Logistics and Space-Limited Scenarios: Portable/Movable Steel Deck Weighbridge with approach ramps.
High-efficiency and Labor-saving Scenarios: Intelligent Unmanned Weighbridge System.
FAQ:
A: Yes. Fujian Fangda’s 80-ton truck scales are specifically engineered to thrive in harsh mining environments. Equipped with IP68-rated load cells, they are fully sealed to effectively block dust and water intrusion. Additionally, the U-beam steel structure is coated with a high-durability anti-corrosion finish, enabling it to withstand extreme temperature fluctuations commonly encountered in African mining areas.
A: Our 80-ton truck scales comply with both JJG 539 and OIML R76 standards, and hold an Accuracy Class III certification. This level of precision ensures reliable and compliant bulk trade settlement for mining, logistics, and related industrial operations.
Key Features
- High Precision: Utilizes advanced load cell technology to provide accurate weight measurements, with a high degree of repeatability. This ensures that every weighing operation is reliable, whether it's for small - scale local deliveries or large - scale industrial shipments.
- Robust Construction: Built with a strong and durable steel structure, the electronic truck scale can withstand the heavy loads of large trucks. It is designed to resist corrosion, impacts, and environmental factors, ensuring a long service life even in harsh working conditions.
- Digital Display: Equipped with a clear and easy - to - read digital display, which shows the weight of the truck and its load in real - time. The display can be customized to show different units of measurement, such as kilograms, tons, or pounds.
- Data Management: Many electronic truck scales come with data management capabilities. They can store weighing data, which can be easily retrieved for record - keeping, invoicing, and analysis purposes. Some models can also be connected to a computer network for seamless data transfer.
Remote Monitoring: In modern electronic truck scales, remote monitoring is possible. This allows operators to monitor the weighing process from a distance, improving efficiency and reducing the need for on - site personnel.
Applications
- Logistics and Transportation: In the logistics industry, electronic truck scales are used to accurately measure the weight of goods being transported. This helps in ensuring compliance with weight regulations, preventing overloading, and optimizing transportation costs.
- Manufacturing: In manufacturing plants, these scales are used to weigh raw materials and finished products. This ensures accurate inventory management and quality control.
- Waste Management: Electronic truck scales are used in waste management facilities to weigh waste trucks. This helps in determining the amount of waste being disposed of and calculating disposal fees.
Installation and Maintenance
- Installation: The installation of an electronic truck scale requires professional expertise. It involves proper site preparation, including leveling the ground and ensuring proper drainage. The load cells and other components need to be installed accurately to ensure optimal performance.
- Maintenance: Regular maintenance is essential to keep the electronic truck scale in good working condition. This includes checking the load cells for damage, calibrating the scale periodically, and cleaning the surface to prevent the accumulation of dirt and debris.
Conclusion
The Electronic Weighbridge is an essential tool for industries that require accurate weight measurement of trucks and their loads. With its high precision, robust construction, and advanced features, it provides a reliable and efficient solution for weighing operations. Whether it's for ensuring compliance, optimizing costs, or managing inventory, the electronic truck scale is a valuable asset.
