Unattended truck scale camera product details

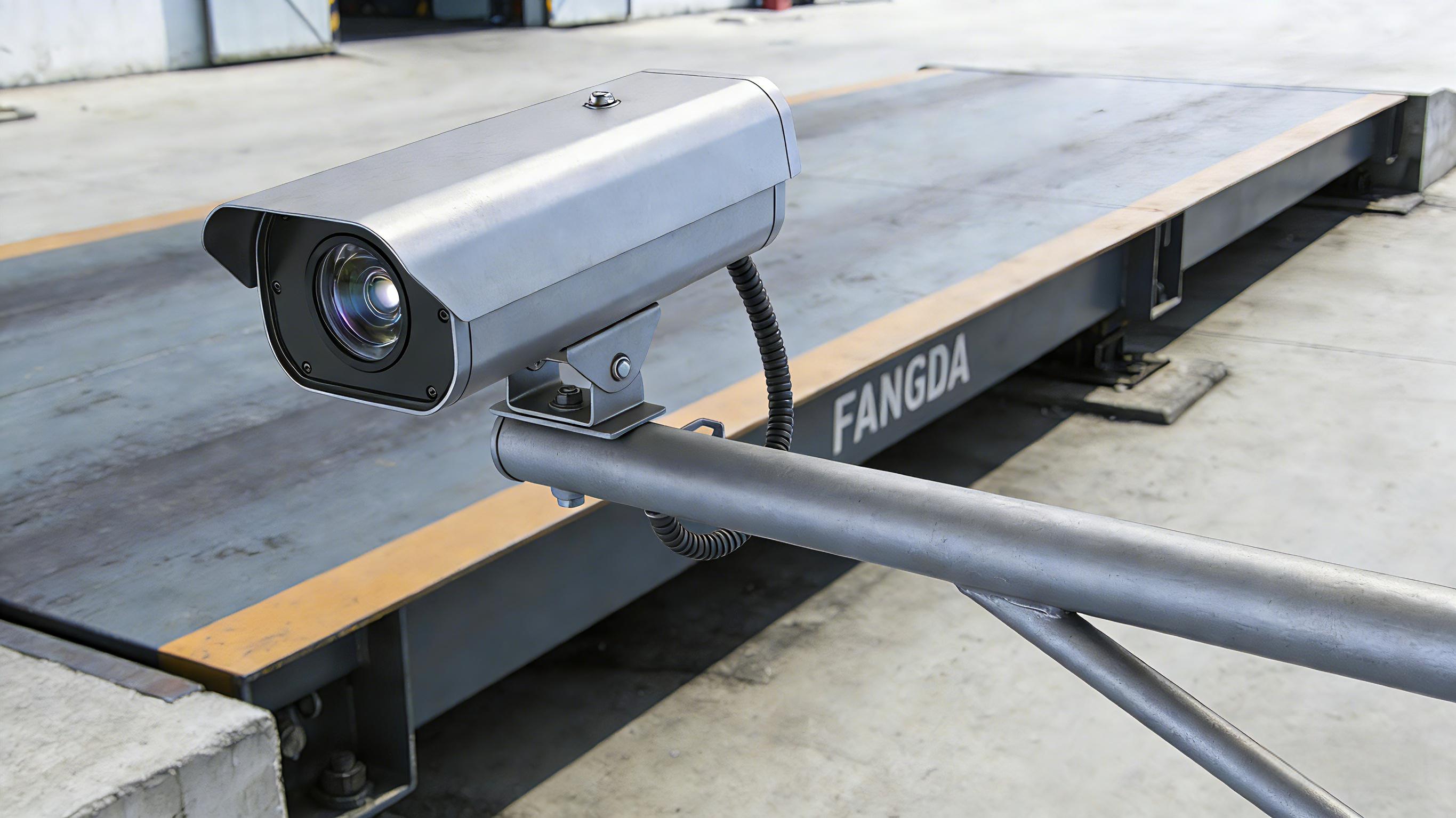

Unattended Truck Scale Camera
The Unattended Truck Scale Camera（www.fjfangda.com） is a revolutionary solution designed to enhance the efficiency and accuracy of truck weighing processes. This advanced camera system is specifically engineered for use in unattended truck scale environments, providing seamless and reliable monitoring.
Fujian Fangda Weighbridge Core Component Camera General Parameter Table | |||
Parameter Items | License Plate Recognition Camera (LPR) | Panoramic surveillance camera | Selection Recommendations |
Resolution Pixel | ≥5 million (2560×1920) | ≥4 million (2560×1440) | Higher pixel resolution provides clearer details at a distance; prioritize H.265 encoding for better storage efficiency. |
Lens focal length | 2.8–12 mm (zoom)/fixed focal length | Fixed focal length (4–6 mm) | The optimal recognition distance is 3–6 m; the field of view covers the lane width to avoid missed detection. |
Identification Distance | 3–32 m | 5–20 m | Match the scale truck's slope lead length; for mines or orchards requiring longer lead slopes, select a model with greater lead distance. |
Identification speed | Single sheet ≤200 ms | Frame rate ≥ 25 fps | The faster the response, the less traffic congestion; during peak hours, the processing time for ≥300 vehicles should be <150 ms. |
discrimination | ≥99% during the day, ≥98% at night, and ≥95% for complex cases | - | Actual test conditions: dirty surfaces, backlighting, rainy weather; if performance drops below 95%, replace the algorithm or lens. |
Wide Dynamic （WDR） | Support, ≥120 dB | Support, ≥100 dB | No screen blackening under backlight or strong light; license plates are clearly visible. |
low-light (level) | Color ≤0.05 Lux, black and white ≤0.02 Lux | Color ≤0.1 Lux | Nighttime / under tree shade / inside a factory building: images remain clear without additional lighting, achieving starlight-quality clarity as the priority. |
Lighting Method | White light / Infrared / Flash, range 5–32 m | Infrared white light | For outdoor use: white light + strobe lighting; for residential areas: infrared lighting to avoid disturbance to residents. |
levels of protection | IP66–IP67 | IP66–IP67 | For outdoor, coastal, or dusty environments, the device must meet IP67 protection rating and include surge protection. |
working temperature | -40℃–+60℃ | -30℃–+70℃ | Compatible with both cold and tropical climates; heated defogging is available for extremely cold conditions. |
communication interface | Gigabit Ethernet (POE) | Gigabit Ethernet (POE) | Single-wire power transmission + video, simplified wiring; local storage ≤512 GB. |
AI function | License Plate / Vehicle Model / New Energy Vehicle / Illegal Parking | Humanoid / Invasion / Occupation / Scattering | Essential anti-fraud features: AI detection of partial loading, half-load weighing, and queue-jumping prevention. |
POWER | DC12V / POE | DC12V / POE | Open-air environments prioritize POE technology to reduce cable failures. |
Yes. The FangDa Unattended Truck Scale Camera delivers AI-powered license plate recognition, vehicle detection, and anti-fraud monitoring (partial loading, queue-jumping) with ≥99% daytime accuracy. IP66–IP67 protection and -40°C to +70°C operating range handle dust, rain, and extreme African mine conditions. POE Ethernet enables remote real-time viewing.
It turns truck scales into fully unattended systems with HD day/night imaging, AI alerts for illegal parking or invasions, and seamless integration with weighing data for tamper-proof visual records. Remote network access via POE simplifies operations at African ports and logistics hubs, reducing congestion and preventing overload fraud.
Built for harsh outdoor use with IP66–IP67 weatherproofing, wide temperature compensation (-40°C to +70°C), and low-light performance—no extra lighting needed. AI-driven remote monitoring and local 512 GB storage cut downtime at remote African mines, ports, or agricultural stations.
High - Definition Imaging
Equipped with high - definition lenses, the camera captures clear and detailed images of trucks on the scale. Whether it's day or night, the camera can adjust to different lighting conditions, ensuring that every aspect of the truck, including license plates and load details, can be clearly identified.
Remote Monitoring
One of the key features of this camera is its remote monitoring capability. Operators can access the camera feed from anywhere via a secure network connection. This allows for real - time oversight of the weighing process, enabling quick response to any issues or irregularities.
Integration with Weighing Systems
The Unattended Truck Scale Camera easily integrates with existing weighing systems. It can synchronize data with the scale, providing additional visual evidence for each weighing event. This integration helps to prevent fraud and improve the overall integrity of the weighing process.
Durable Design
Built to withstand harsh outdoor conditions, the camera has a rugged and weather - resistant housing. It can operate in extreme temperatures and is protected against dust and water, ensuring long - term reliability and performance.
In summary, the Unattended Truck Scale Camera is an essential tool for modern truck weighing operations. It offers high - quality imaging, remote monitoring, seamless integration, and durability, making it a valuable addition to any unattended truck scale setup.
