What is a weighbridge and how does it work?
If you've ever driven past one of those low, wide concrete or steel platforms at the entrance to a quarry, a grain elevator, or a shipping yard, that's a weighbridge — and it's a genuinely simpler piece of equipment than the price tag on one might suggest. A truck drives onto it, something under the platform measures how much force the vehicle is putting down, and a display somewhere converts that into a weight reading. That's the whole concept. The engineering underneath is what makes it accurate and durable enough to do that reliably, thousands of times, for years.
Since a decent chunk of what I write about tends to get technical fast, I wanted to actually back up and explain the basics for anyone who's ended up here without already knowing this stuff — which, honestly, is most people, because nobody thinks about how a scale works until they need to buy one.
The core idea
A weighbridge measures weight the same fundamental way a bathroom scale does, just built for vehicles instead of people. Something under the platform deforms very slightly under load — an amount too small to see with the naked eye — and that deformation gets converted into an electrical signal proportional to the weight. The bigger the load, the bigger the signal. A control system reads that signal and converts it into the number you see on the display.
The part doing that measurement is called a load cell, and it's really the heart of the whole system. Everything else — the platform, the wiring, the indicator — exists to support and translate what the load cell is actually sensing.
The main components
The platform is the physical structure a vehicle drives onto — usually steel or reinforced concrete, built to distribute vehicle weight evenly down onto the load cells positioned underneath it, typically at each corner for a standard rectangular platform.
The load cells are the actual sensors, usually four of them on a standard truck scale, though larger or longer platforms may use more. Each one measures the portion of the vehicle's weight bearing down on that specific corner.

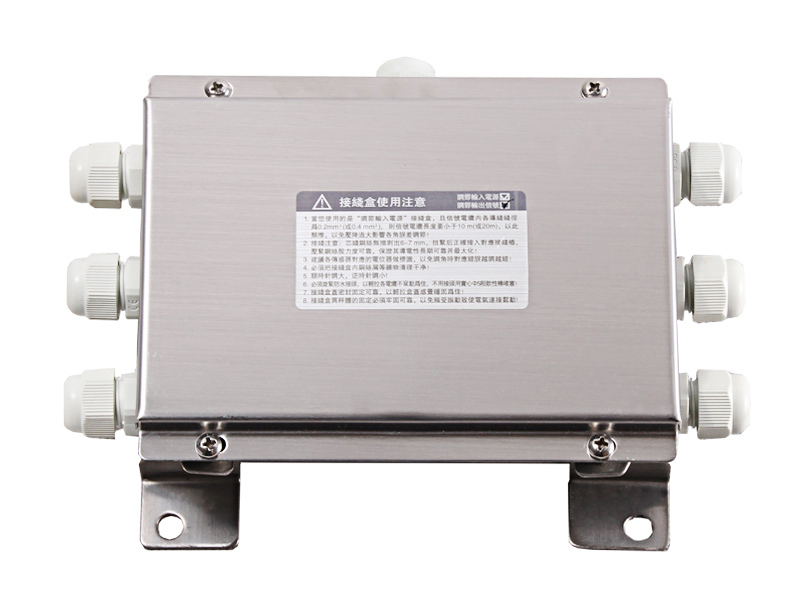

The junction box combines the signals from each individual load cell into a single combined reading, correcting for small differences between individual cells so the platform reads accurately regardless of exactly where on the platform the vehicle is positioned.
The indicator is the display and control unit that receives the combined signal and converts it into the weight reading, and in modern systems often handles data logging, ticketing, or connects to other business software as well.
How it actually works, step by step
A vehicle drives onto the platform and comes to a stop. Its weight presses down on the platform, which transfers that force down onto the load cells at each corner. Each load cell deforms very slightly under that load — again, an amount far too small to see — and that deformation changes the electrical resistance inside the load cell's strain gauges in a precisely measurable way. That change gets converted into a signal, the junction box combines the readings from all the cells into one total, and the indicator converts that combined signal into the weight reading displayed to the operator or driver.
The whole process happens in well under a second. What actually takes engineering effort is making sure that reading stays accurate over years of vehicles driving on and off, sometimes off-center, sometimes overloaded, in weather ranging from dry heat to flooding rain, without the accuracy drifting.
Why the load cell quality actually matters this much
This is the part that surprises people who assume a weighbridge is mostly about the concrete platform. The platform and structural design matter, but the load cells are where the actual precision and long-term reliability come from. A cell with a poorly sealed housing lets moisture in over time and starts reading inaccurately in ways that are hard to diagnose from the outside. A cell that isn't built to handle real-world off-center loading or occasional overload wears out faster than its rated lifespan suggests. The platform can look identical from the outside on two different scales, and the actual performance difference between them almost always traces back to what's happening inside the load cells.
Different types, briefly
Weighbridges vary in a few important ways beyond just capacity — pit-type platforms that sit flush with the ground versus surface-mounted platforms that sit above grade with a ramp, analog versus digital load cell systems, and attended versus unattended operation. Each of those is really its own conversation with its own tradeoffs, worth understanding separately once you've got the basic concept down.
Who's writing this
I work with Fujian Fangda Weighbridge, a truck scale and load cell manufacturer based in Fujian, China. We build the platforms and the load cells that go inside them, across the full capacity range from small platform scales up through heavy industrial installations at ports and mining sites. A lot of what we post tends to assume some baseline familiarity with this equipment, so if this is your first time thinking seriously about a weighbridge, hopefully this is a useful starting point before getting into the more specific decisions — capacity, load cell type, platform design — that actually determine what you should buy.
