A 60 ton weighbridge is an electronic truck scale designed to weigh trucks, trailers and other commercial vehicles with a maximum weighing capacity of 60 tons. Fangda 60 ton truck scales can be configured with a high-strength U-beam steel structure, C3/C6 load cells, customized platform dimensions, and pitless or pit-type installation. They are suitable for logistics, agriculture, construction, industrial and material-handling applications.
Parameter
Type
:
Electronic weighbridge
Specification
:
customize
Material
:
High quality Q235B steel
Brand
:
FUJIAN-FANGDA
Description
:
The electronic weighbridge is a high - precision weighing device designed for accurately measuring the weight of trucks and their loads.
shippingDetails
:
Sea freight, land transportation
fjfangda@gmail.com
Reservation Now
Detail

Fangda 60 ton weighbridge and truck scale is an electronic vehicle weighing system designed for trucks, trailers, agricultural vehicles, construction vehicles and other commercial vehicles with a maximum weighing capacity of 60 tons.


The 60 ton truck scale combines a heavy-duty steel weighing platform with load cells, a junction box and a digital weighing indicator to measure the gross weight of vehicles and their cargo.

Fangda can customize the platform dimensions, load cell configuration, foundation type and weighing system according to the vehicle type, weighing frequency and installation conditions of the project.

The 60 ton weighbridge is part of Fangda's wider 30–200 ton truck scale and weighbridge range and can be supplied for fixed, pit-type, pitless and customized weighing applications.

What Is a 60 Ton Weighbridge?

A 60 ton weighbridge is a large vehicle weighing scale with a rated capacity of 60 tons.

Unlike a small platform scale, a truck weighbridge allows an entire vehicle to be positioned on the weighing platform so that the system can measure the combined weight of the vehicle and its cargo.

A typical 60 ton electronic weighbridge consists of:

  • Steel weighing platform

  • Load cells

  • Junction box

  • Digital weighing indicator

  • Foundation or support structure

  • Approach ramps where required

  • Weighing software or ticketing system as an option

For automated applications, additional equipment such as RFID identification, license plate recognition, traffic lights, barriers, cameras and weighing software can be integrated into the system.


60 ton weighbridge and truck scale

60 Ton Truck Scale for Commercial Vehicles

A 60 ton capacity is commonly used for commercial transportation and industrial vehicle weighing where the required gross vehicle weight is below the higher capacities used for heavy mining and specialized applications.

The appropriate platform size should be determined by the actual vehicle dimensions rather than capacity alone.

Factors to consider include:

  • Maximum gross vehicle weight

  • Vehicle length

  • Wheelbase

  • Number of axles

  • Axle spacing

  • Daily weighing frequency

  • Vehicle approach and departure conditions

  • Available installation space

For example, Fangda has a documented 3 × 9 meter, 60 ton weighbridge installation at a pig farm in Zhangzhou, demonstrating a compact configuration for a specific agricultural weighing application.

Heavy-Duty U-Beam Structure

Fangda's truck scale range uses high-strength U-beam structures for heavy-duty weighing applications.

The U-beam structure provides the main load-bearing framework beneath the weighing deck and is designed for repeated vehicle loading.

For a 60 ton weighbridge, the structural configuration should be selected according to the expected traffic volume, vehicle axle loads, installation environment and local civil engineering requirements.

A scale used by a logistics fleet with frequent daily traffic may require a different configuration from a scale used on an agricultural site with lower weighing frequency.

60 Ton Weighbridge Platform Sizes

Fangda supports customized weighbridge platform dimensions.

Common platform widths include approximately 2.5 m or 3 m, while platform length can be selected according to the vehicle being weighed.

Available configurations across Fangda's truck scale range include dimensions such as:

  • 2.5 × 5 m

  • 2.5 × 6 m

  • 3 × 5 m

  • 3 × 9 m

  • 3 × 12 m

  • 3 × 16 m

  • 3 × 18 m

  • 3 × 24 m

  • Other customized dimensions

The 3 × 9 m configuration is particularly relevant to the documented 60 ton pig farm installation.

For longer trucks and trailers, a longer platform can be specified where required.

The final dimensions should always be confirmed from the actual vehicle drawings and site layout.

C3 and C6 Load Cell Options

Load cells are the sensing components installed between the weighing platform and its supporting structure.

They detect the load applied to the platform and convert it into an electrical signal used by the weighing indicator.

Fangda's truck scale configurations support C3 and C6 load cell options.

The appropriate load cell configuration depends on the required weighing accuracy, application, environmental conditions and local legal-for-trade requirements.

For outdoor installations, IP68 protection can also be specified for applications exposed to rain, dust and other environmental conditions.



Pitless 60 Ton Weighbridge

A pitless weighbridge is installed above ground and normally uses ramps to allow vehicles to drive onto and off the platform.

This configuration can be useful when the project has sufficient space for approach ramps and when the customer wants to avoid a conventional deep foundation pit.

Potential advantages include:

  • Easier access for inspection

  • Simpler drainage management

  • Reduced pit excavation

  • Suitable for many outdoor sites

  • Flexible installation layout

The required civil foundation should still be designed according to local soil and structural conditions.

Pit-Type 60 Ton Truck Scale

A pit-type weighbridge is installed in a foundation pit so that the weighing platform is closer to the surrounding ground level.

This configuration can be useful where site space is limited or where the project requires a low-profile vehicle access arrangement.

Pit installation requires proper attention to:

  • Drainage

  • Foundation construction

  • Water protection

  • Maintenance access

  • Local soil conditions

  • Electrical cable routing

Fangda can provide the technical requirements for the selected weighbridge configuration so that local civil contractors can prepare the installation site.

60 Ton Weighbridge for Agriculture and Farms

60 ton truck scales can be suitable for agricultural operations where trucks carrying feed, livestock, grain, fertilizer or other materials need to be weighed.

Fangda's documented 3 × 9 m, 60 ton weighbridge project at a pig farm in Zhangzhou is an example of a 60 ton weighing application in the agricultural sector.

In agricultural environments, the scale may be exposed to:

  • Rain

  • Mud

  • Dust

  • Organic material

  • Frequent vehicle traffic

  • Seasonal changes in weighing volume

The weighing platform, load cells and drainage system should therefore be selected according to the actual operating environment.

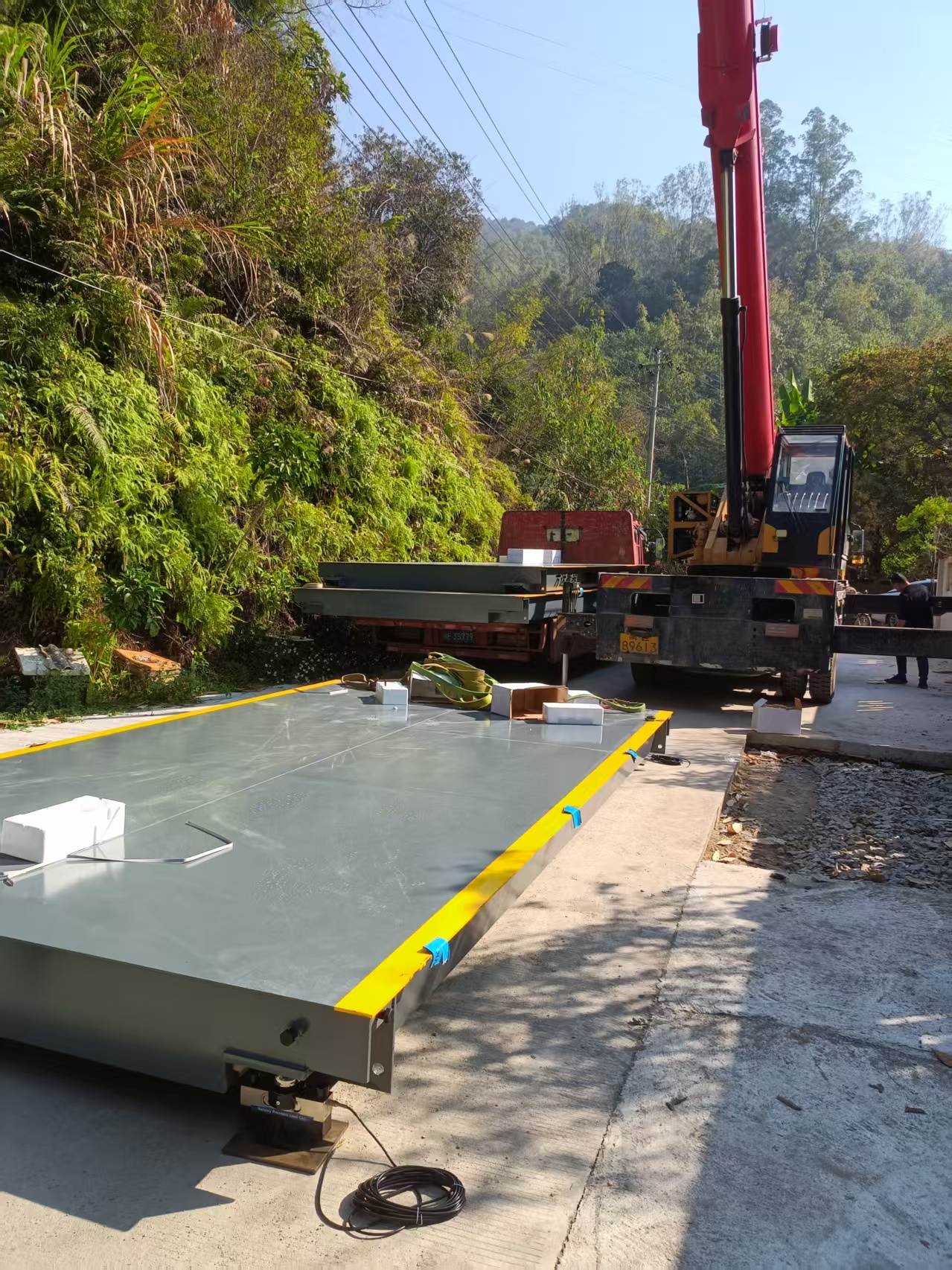

3×9-meter, 60-ton weighbridge at a pig farm in Zhangzhou

60 Ton Weighbridge for Logistics

Logistics and transportation companies use truck scales to measure incoming and outgoing vehicles and cargo.

A 60 ton scale can be configured for commercial trucks and trailers according to their maximum operating weight and dimensions.

For higher traffic facilities, the weighing system can be connected to:

  • License plate recognition

  • RFID vehicle identification

  • Traffic lights

  • Automatic barriers

  • Cameras

  • Weighing software

  • Digital weighing records

For facilities requiring unattended operation, the 60 ton weighbridge can also be integrated into Fangda's unattended weighing system.

60 Ton Weighbridge for Construction

Construction companies and material yards may use truck scales to record the weight of:

  • Sand

  • Gravel

  • Aggregate

  • Cement materials

  • Soil

  • Construction waste

  • Other bulk materials

A 60 ton truck scale can help record vehicle weight before and after loading and support material dispatch and receiving operations.

The platform size should be selected according to the trucks used at the construction or material-handling site.

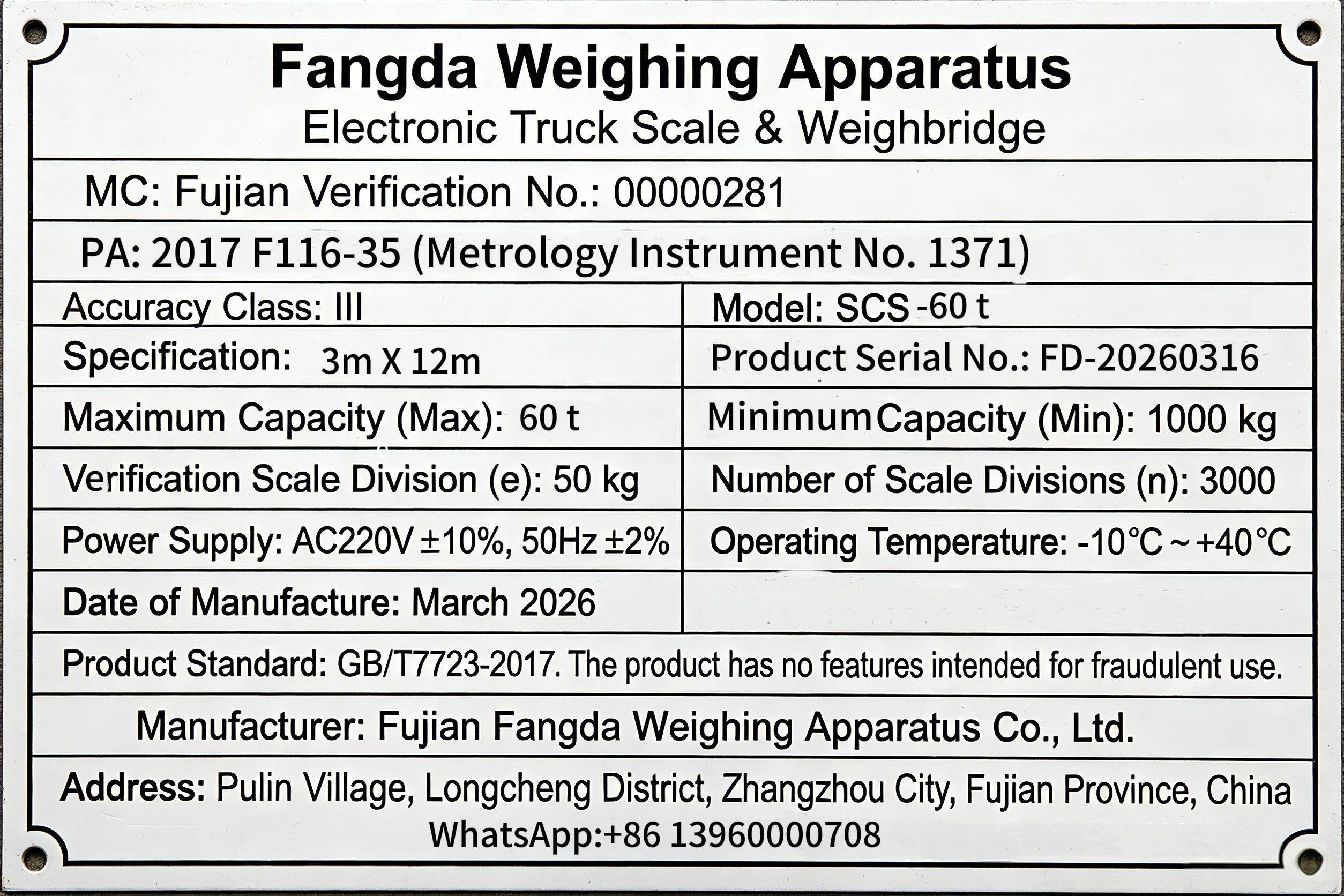

60 Ton Weighbridge Technical Specifications

Specification60 Ton Weighbridge
Weighing Capacity60 tons
Product TypeTruck Scale / Vehicle Weighbridge
StructureHigh-strength U-beam steel structure
Steel MaterialQ235B steel
Load CellC3 / C6
InstallationPitless / Pit-type
Platform Width2.5 m / 3 m or customized
Platform LengthCustomized according to vehicle
Example Configuration3 × 9 m
Other Available Sizes2.5 × 5 m, 2.5 × 6 m, 3 × 5 m, 3 × 12 m, 3 × 16 m, etc.
DisplayLED digital indicator
Load Cell ProtectionIP68 option
Weighing MethodStatic weighing
AccuracyStandard configuration according to OIML R76 Class III
AutomationOptional
Vehicle IdentificationRFID / License Plate Recognition options
SoftwareOptional weighing and data management system
Power SupplyAC220V / 50Hz
OEM / ODMSupported
DeliveryConfiguration dependent

Final specifications should be confirmed according to the actual vehicle, platform dimensions, destination market and project requirements.

60 Ton Weighbridge for Outdoor and Harsh Environments

A truck scale installed outdoors must operate under conditions that may include rain, dust, mud, vibration and repeated vehicle traffic.

For these applications, Fangda can configure the weighing system with appropriate load cell protection and structural treatment.

IP68 load cells can be specified where water and environmental exposure are important considerations.

For sites with heavy traffic, the platform structure and foundation should also be designed according to the actual vehicle loads and traffic frequency.

Unattended 60 Ton Truck Scale

A 60 ton weighbridge can be integrated into an unattended vehicle weighing system when the customer needs automated operation.

An unattended system can combine:

  • RFID identification

  • License plate recognition

  • Infrared vehicle positioning

  • Automatic barriers

  • Traffic lights

  • Video capture

  • Voice guidance

  • Weighing software

  • Automatic data recording

The system can connect vehicle identification with the weighing process so that weighing data can be recorded automatically.

For larger operations, Fangda's unattended truck scale product range covers 30 to 200 tons and supports ERP integration through network-based functions.

60 Ton Weighbridge Manufacturer

Fangda Weighing Instruments is a manufacturer and exporter of electronic truck scales, weighbridges, axle scales and intelligent weighing systems based in Zhangzhou, Fujian, China.

The company's current truck scale range covers capacities from 30 tons to 200 tons, including 60 ton, 80 ton, 100 ton, 120 ton and 150 ton configurations.

Fangda supplies weighing equipment for logistics centers, ports, mines, quarries, agricultural operations, waste management facilities and industrial sites.

The company also supports OEM, ODM and customized weighbridge configurations.

60 Ton Weighbridge Installation

Before ordering a 60 ton weighbridge, the project should confirm:

  1. Maximum gross vehicle weight

  2. Vehicle type

  3. Vehicle length

  4. Number of axles

  5. Required platform dimensions

  6. Daily weighing volume

  7. Pit or pitless installation

  8. Foundation conditions

  9. Drainage requirements

  10. Required weighing accuracy

  11. Local certification requirements

  12. Whether unattended operation is required

Providing these details allows the manufacturer to recommend the appropriate platform structure and weighing system.

60 Ton Weighbridge Price

The price of a 60 ton weighbridge depends on more than its rated capacity.

Important cost factors include:

  • Platform dimensions

  • Steel structure

  • Load cell type

  • Number of load cells

  • Pit or pitless installation

  • Digital indicator

  • Automation requirements

  • Certification requirements

  • Shipping destination

  • Installation and civil works

Fangda's published 2026 budgetary guide places a standard 60 ton weighbridge platform and load cell system at approximately US$3,500–7,000 before civil works and installation, while noting that actual project pricing varies according to configuration and location.

For an accurate quotation, the customer should provide the required platform size, vehicle type, installation method and destination country.

Request a Quote for a 60 Ton Weighbridge

Looking for a 60 ton truck scale for logistics, agriculture, construction or industrial weighing?

Send Fangda your:

  • Required platform size

  • Truck or trailer type

  • Installation method

  • Destination country

  • Expected daily weighing volume

  • Automation requirements

Fangda can recommend a suitable 60 ton weighbridge configuration and provide a technical proposal and quotation.

Request a Quote for a 60 Ton Weighbridge →



60 Ton Weighbridge FAQ

1. What is a 60 ton weighbridge?

A 60 ton weighbridge is an electronic truck scale designed to weigh vehicles and their cargo up to a rated capacity of 60 tons.

2. What vehicles can be weighed on a 60 ton truck scale?

A 60 ton truck scale can be configured for commercial trucks, trailers, agricultural vehicles, construction vehicles and other vehicles whose gross weight is within the rated capacity.

3. What platform size is available for a 60 ton weighbridge?

Fangda supports customized platform dimensions. A documented Fangda 60 ton project uses a 3 × 9 m platform, while other dimensions can be selected according to vehicle size and site conditions.

4. Can a 60 ton weighbridge use a U-beam structure?

Yes. Fangda's truck scale range uses high-strength U-beam structures for applications from 30 to 200 tons.

5. Does Fangda offer C3 and C6 load cells?

Yes. Fangda's weighbridge configurations support C3 and C6 load cells.

6. Can a 60 ton weighbridge be installed without a pit?

Yes. A pitless configuration is available. The platform is installed above ground and normally uses approach ramps.

7. Is a pit-type 60 ton weighbridge available?

Yes. Fangda supports pit-type and pitless installation configurations depending on the project and site requirements.

8. Can a 60 ton weighbridge be used on a farm?

Yes. A 60 ton weighbridge can be used for agricultural vehicle and material weighing. Fangda has a documented 3 × 9 m, 60 ton weighbridge installation at a pig farm in Zhangzhou.

9. Can a 60 ton truck scale be used for logistics?

Yes. A 60 ton truck scale can be used to weigh commercial trucks and trailers in logistics and transportation facilities.

10. Can the 60 ton weighbridge be used outdoors?

Yes. The system can be configured for outdoor industrial environments. Appropriate load cell protection and structural treatment should be selected according to local conditions.

11. Are IP68 load cells available?

Yes. IP68-rated load cells can be specified for applications where additional protection against water and environmental exposure is required.

12. Can a 60 ton truck scale operate unattended?

Yes. The weighbridge can be integrated with RFID, license plate recognition, infrared positioning, barriers, cameras and weighing software for unattended operation.

13. Can the 60 ton weighbridge connect to an ERP system?

For automated applications, Fangda's unattended weighing systems support network-based integration with existing ERP systems.

14. What accuracy class does the 60 ton weighbridge use?

Fangda states that its standard configuration complies with OIML R76 Class III accuracy. Local legal-for-trade requirements should be confirmed for the destination market.

15. How much does a 60 ton weighbridge cost?

Fangda's 2026 budgetary guide gives approximately US$3,500–7,000 for a standard 60 ton platform and load cell system before civil works and installation. Actual project pricing depends on platform dimensions, configuration, certification, shipping and site requirements.

16. How long does it take to manufacture a 60 ton weighbridge?

Fangda's published FAQ states that a standard 60 ton pit-type or portable weighbridge generally requires about 4–5 working weeks after deposit confirmation. Customized configurations may require additional time.

17. Can Fangda customize a 60 ton weighbridge?

Yes. Fangda supports customization of platform size, structure, load cells, installation configuration, software and other project requirements.

18. What information is needed for a 60 ton weighbridge quotation?

Provide the vehicle type, maximum gross weight, platform dimensions, installation method, destination country, weighing frequency and any automation or certification requirements.


See the 3 × 9 m, 60 ton weighbridge installation at a pig farm →


3×9-meter, 60-ton weighbridge at a pig farm in Zhangzhou



Split-type weighbridge



Split-type weighbridge


ISO-9001-FANGDA WEIGHBRIDGE


Need a 60 Ton Weighbridge for Your Project?

Send us your truck type, required platform size, installation method and destination country. Fangda will recommend a suitable 60 ton truck scale configuration and provide a technical proposal and quotation.

Request a Quote

Send Your Weighbridge Requirements




Request a Quote
Contact us to get the latest news about our products, events, and promotions.
  • NAME /COMPANY:*

  • TEL :*

  • E-MAIL*

  • Describe the requirements:*

whatsapp
Wechat
13960000708
