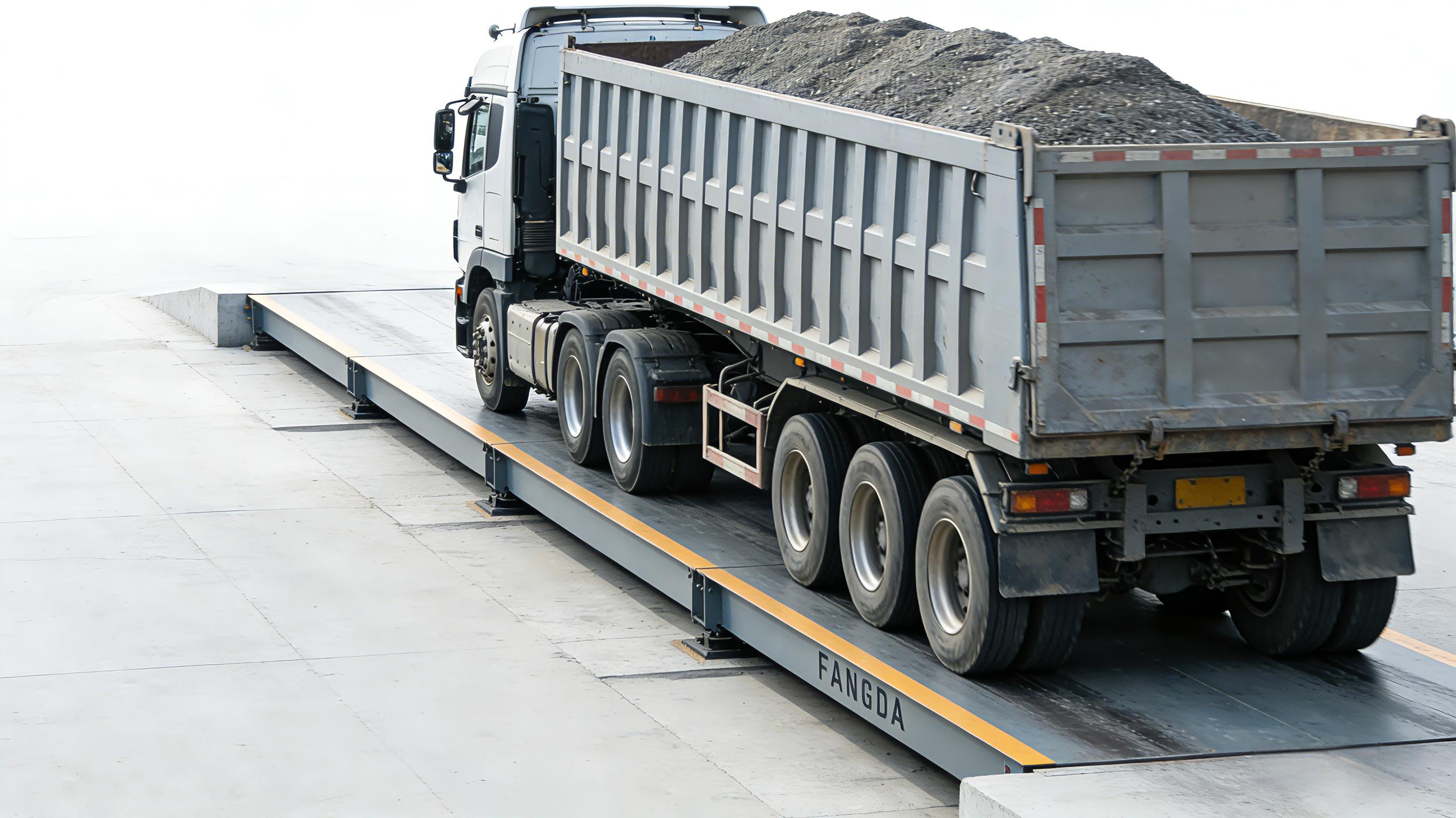

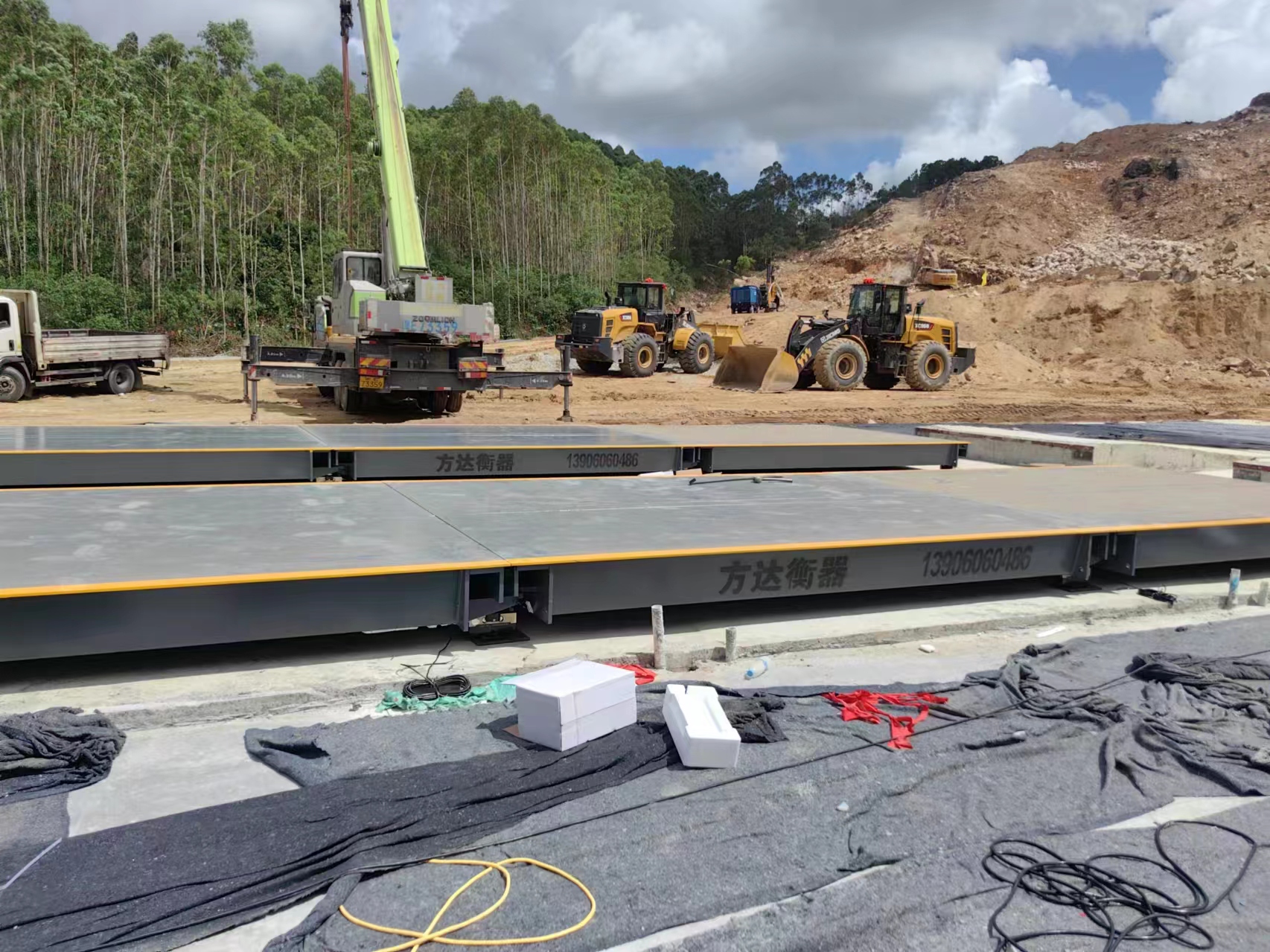

150 ton weighbridge & truck scale
The 150-ton electronic truck scale (heavy-duty truck scale) is a high-capacity weighing system custom-designed for mining areas, ports, and large industrial and mining sites, with a maximum rated capacity of 150 tons. Featuring a modular, split-body design suitable for container shipping, it is specially reinforced to withstand harsh African environments such as high temperatures, heavy dust, high rainfall and humidity, unstable voltage, and coastal salt fog. It complies with the international OIML Class III metrology standards and is suitable for trade settlement involving heavy semi-trailers, heavy-duty vehicles, and bulk cargo.
I. Basic Configuration
Weighbridge: Thickened, reinforced U-beam all-steel structure with dual reinforcement of the deck and main beams, providing resistance to heavy pressure, impact, and deformation under long-term heavy loads. The modular, split-design allows for disassembly and packing into shipping containers, facilitating simple on-site assembly. Standard dimensions: 3m × 16m/18m/20m/24m; custom sizes are available. The entire structure features a multi-layer anti-corrosion coating to withstand mining dust and coastal salt fog corrosion.
Core Components: Equipped with high-capacity digital load cells, IP68-rated for dust, water, lightning, and electromagnetic interference protection; paired with stainless steel waterproof junction boxes and wide-voltage Chinese/English display panels. Built-in communication interfaces support external connections to large screens, printers, computers, and weighing management systems.

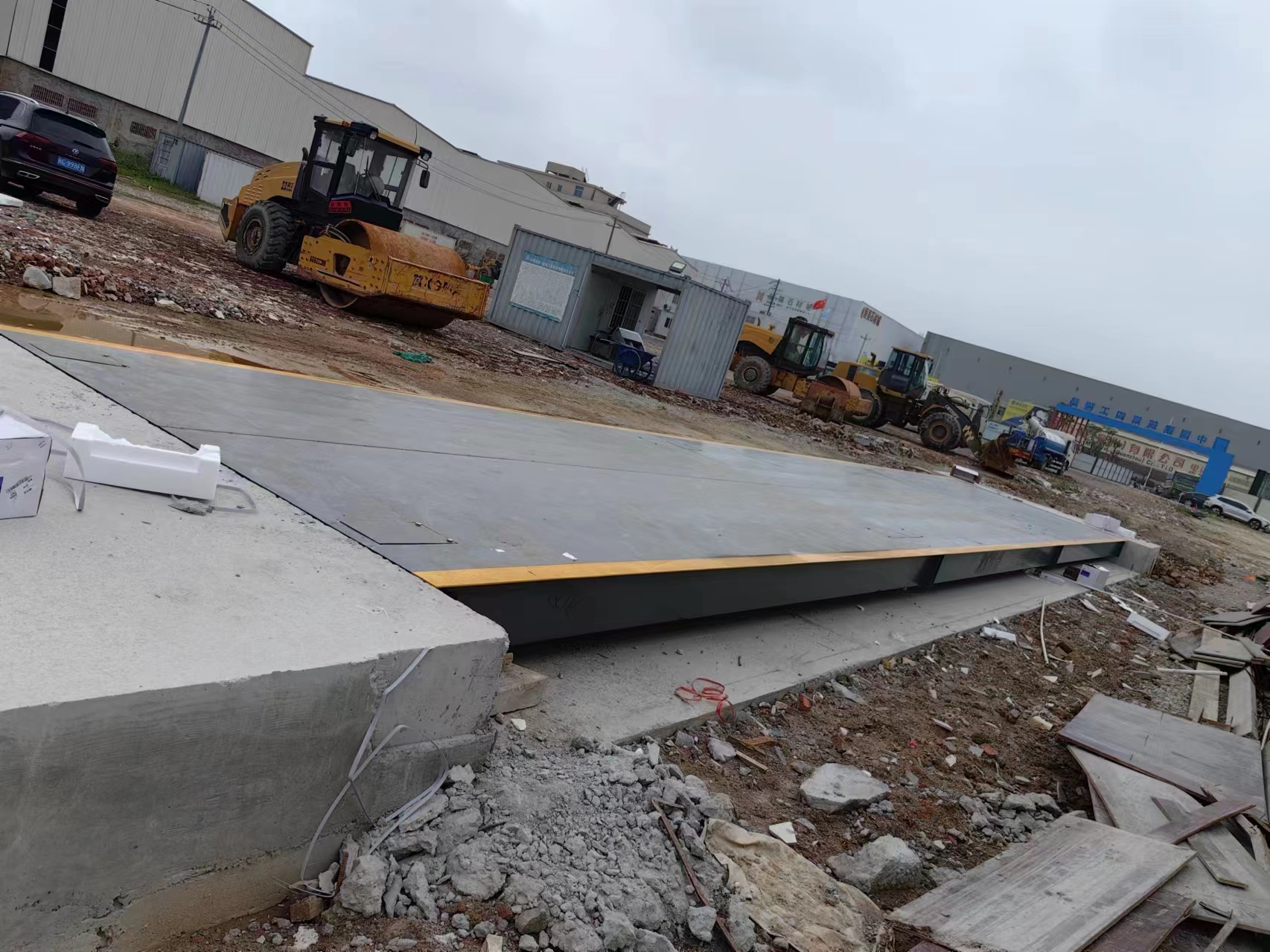

Installation Methods: Two options available—pitless (with access ramp, enabling quick installation and convenient future maintenance) and shallow pit—both suitable for open-air outdoor sites.
II. Key Specifications

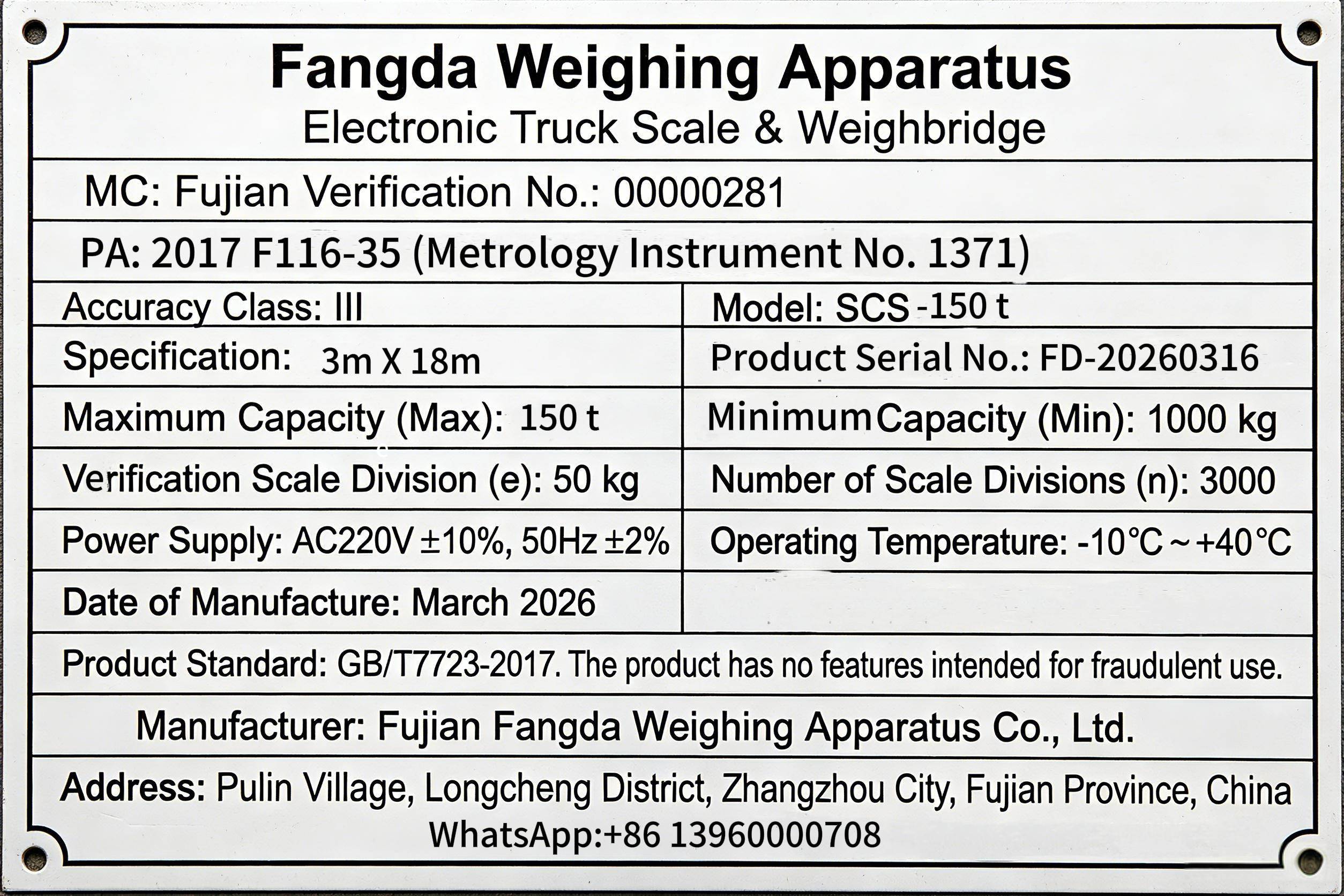

Fujian Fangda Weighbridge General Parameter Table -Maximum Capacity: 150 t Version-SCS,Steel material：High quality Q235B steel | |||
Display Mode | LED | Protection Grade | IP68 |
customized support | OEM, ODM, OBM, Software Reengineering | type | Truck Scale, Vehicle Weighing Scale, Weighbridge |
Weighing Method | Static weighing | structure | U-shaped steel |
operational environment | Non-explosion-proof type | Lightning Protection Design | With lightning protection |
power | AC220/Hz50 | Delivery Time | Within 15-30days |
Weighing Range | 30ton-150ton | Panel thickness | 8mm~14mm |
Transport Packaging | Load with 20-foot or 40-foot standard containers | Certification Description | SCS, ISO9001: 2005 |
Working temperature | -10~40°C(indicator), -30~75°C (load cell) | Sensor | C3/C6 |
brand | Fangda | Production Capacity | 1000 Sets/Sets Per Year |
HS Code | 8423891090 | Source | Zhang Zhou, Fujian, China |
Custom Size： | 2.5*5m,2.5*6m,3*5m,3*12m,3*16m,3*18m,3*24m，and others, which can be customized according to actual needs. | ||
III. Product Advantages
Robust Heavy-Duty Performance: Reinforced load-bearing structure supports high-frequency, heavy-tonnage continuous operations in mining areas and material yards, ensuring strong mechanical stability.
Cross-Border Transport-Friendly: Modular, split-body design compatible with standard shipping containers, reducing transportation costs and cargo damage.
Outstanding Weather Resistance: Fully sealed electrical components + multi-layer anti-corrosion coating, withstanding complex environments such as sandstorms, torrential rain, high humidity, and salt fog.
High Grid Adaptability: The electronic control system is optimized for local unstable power grids, resisting voltage fluctuations and ensuring uninterrupted operation.
Highly Expandable: Can be equipped with unattended operation systems, explosion-proof components, and remote management software to meet automated weighing requirements.
IV. Application Scenarios
Primarily used in large-scale mines, sand and gravel yards, cement plants, smelters, deep-sea ports, major logistics hubs, and heavy industry enterprises across Africa for weighing and accounting of heavy semi-trailers, extra-long freight vehicles, and bulk cargo such as ore, building materials, and mineral raw materials.
V. Optional Configurations
UPS (Uninterruptible Power Supply), external weighing display, Chinese/English weighing management software, unattended weighing system, explosion-proof kit, reinforced anti-corrosion components
FAQs :
1.Can the equipment operate stably over the long term in high-temperature, windy, and dusty environments?
The entire unit features a fully sealed design, with core components rated IP68 for high protection against dust and sand. Components are selected for high-temperature resistance, ensuring weighing accuracy remains unaffected in high-temperature and dusty conditions.
2.How is equipment operation ensured in areas with unstable local voltage and frequent power outages?
The equipment supports wide-range voltage input, making it suitable for fluctuating power grids. An optional UPS power supply allows weighing to continue and data to be saved after a power outage, preventing downtime and data loss.
3.In rainy, humid, or coastal salt fog areas, is the scale body prone to rust?
The scale body employs multiple professional anti-corrosion and anti-rust processes, and the electrical components are waterproof and moisture-resistant, allowing for long-term outdoor use in environments with rain, high humidity, and salt fog.
