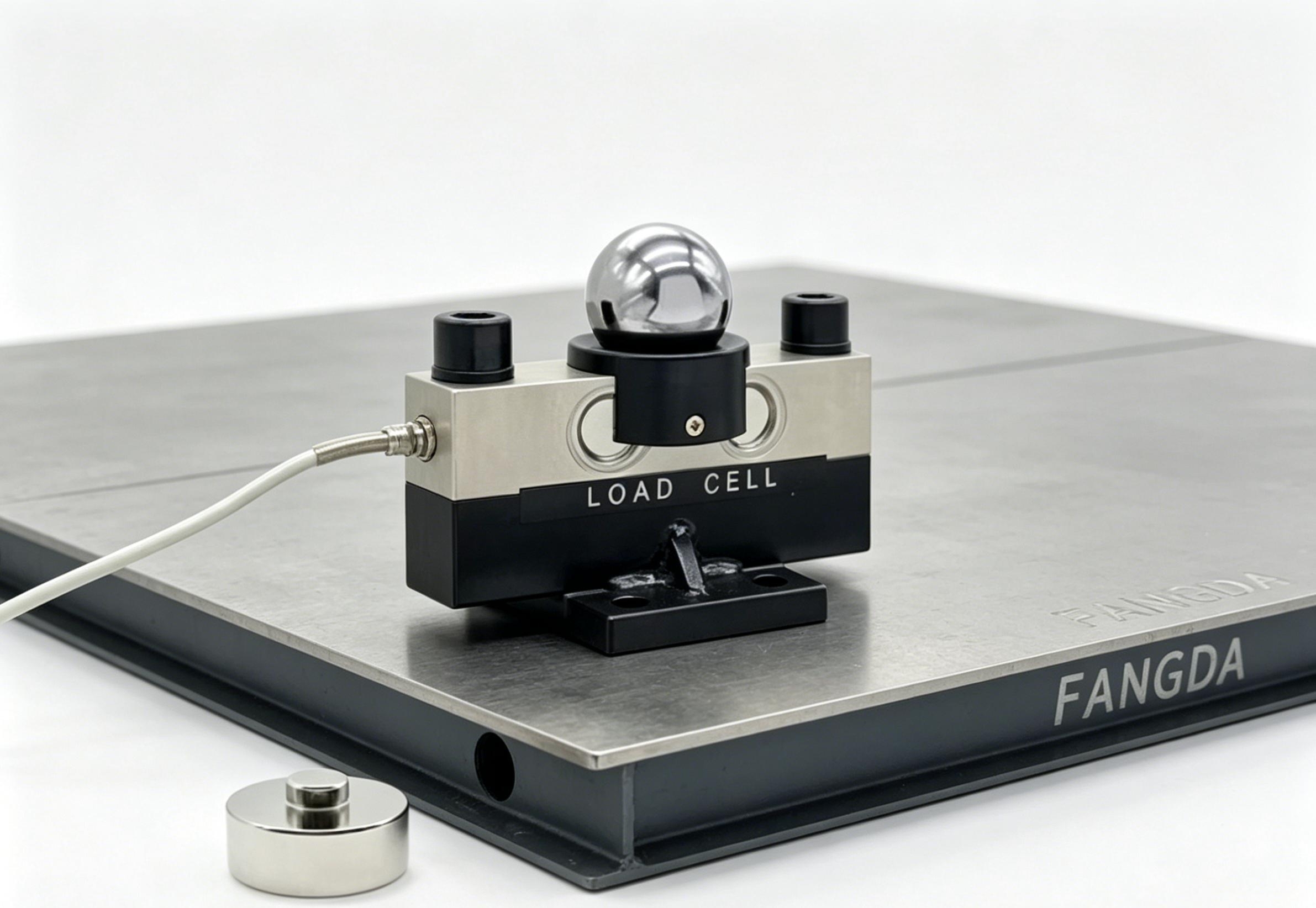

QS 30t-50t Weight Sensor Low Price Double Ended Shear Beam Load Cell
SQB load cell is widely used in floor scales, platform scales,etc, its capacity is from 30ton to 50 tons.
Key attributes
type | Floor Scale, Truck Scale, Weighbridge | accuracy | Other |
display type | LED | warranty | 12months |
customized support | OEM, ODM, OBM | place of origin | Fujian, China |
model number | SCS | brand name | FANDA |
material | Alloy Steel | Model Number | QS |
Place of Origin | FUJIAN | Product name | load cell |
Application | Weighbridge | Type | Waterproof |
Power supply | 12 ~ 24V DC | Output | Digital Sensor |
Usage | PRESSURE SENSOR | Certificate | CE RoHS |
Port | zhangzhou | Rated Load | 30-50t |
SPECIFICATION:
Rated capacity: 5ton to 50ton Operating temperature range: -30 to +70℃
Rated output:2.0±0.002mv/v Maximum safe overload;150% OF R.C
Combined error:±0.03% F.S Ultimate safe overload;200% OF R.C
Non-repeatability:±0.02% F.S Recommended Excitation;10 to 12V DC
Non-linearity:±0.02% F.S Maximum Excitation;15V DC
Hysteresis error:±0.02% F.S Environment protection: IP68
Zero balance: ±1% F.S Input impedance: 750±10Ω
Creep error(30minutes): ±0.02% F.S Output impedance: 702±3Ω; 703±5Ω(cable≥15m);
Temperature effect on zero: ±0.02% F.S Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S Material: nickel-plated alloy steel;
Compensated temperature range: -10 to +40℃ Cable length: 5.2meter(5t);8meter(10t); 10meter(15t);
10/12meter(20t);12/16meter(25t~50t),diameter 6mm
