Fangda 100 ton weighbridge and truck scale is a heavy-duty vehicle weighing system designed for trucks, trailers, construction vehicles, mining vehicles and other industrial vehicles with weighing requirements up to 100 tons.

The system is built around a high-strength steel weighbridge structure and precision load cells to provide stable vehicle weighing in demanding industrial environments. Fangda can configure the 100 ton truck scale according to vehicle dimensions, site conditions, installation requirements and weighing applications.

Our weighbridges are available with U-beam structures, C3 or C6 load cells, customized platform dimensions, and pitless or shallow-pit installation options. The same product platform can also be integrated into unattended weighing systems with vehicle identification, traffic control and weighing data management.

Why Choose a 100 Ton Weighbridge?

A 100 ton truck scale is commonly used when standard commercial truck scales do not provide sufficient capacity for the vehicles or loads being weighed.

Typical applications include:

• Construction material yards

• Quarries and aggregate plants

• Mining operations

• Logistics and transportation facilities

• Ports and terminals

• Industrial factories

• Warehouses and distribution centers

• Waste management facilities

• Infrastructure construction projects

• Bulk material handling

The correct weighbridge capacity should be selected according to the maximum gross vehicle weight, axle configuration, platform length and actual operating conditions of the site.

Heavy-Duty U-Beam Weighbridge Structure

Fangda 100 ton weighbridges can use a high-strength U-beam steel structure designed for repeated vehicle loading.

The U-beam design provides structural support across the weighing platform while maintaining a practical steel construction for manufacturing, transportation and installation.

For heavy-duty applications, structural design should take into account not only the nominal weighing capacity but also vehicle impact, axle loads, off-center loading, traffic frequency and environmental conditions.

Fangda's product range covers truck scales and weighbridges from 30 tons to 200 tons, allowing the 100 ton model to be selected as part of a wider heavy-duty weighing system range.

100 Ton Truck Scale Dimensions

The weighing platform should be selected according to the vehicles that will regularly use the scale.

Fangda supports customized platform dimensions, including configurations such as:

• 2.5 × 5 m

• 2.5 × 6 m

• 3 × 5 m

• 3 × 12 m

• 3 × 16 m

• 3 × 18 m

• 3 × 24 m

• Other customized dimensions

A 3 × 12 m or 3 × 16 m platform may be suitable for different truck and construction-vehicle applications, while longer platforms can be specified for longer multi-axle vehicles.

The final platform size should be determined from the vehicle dimensions, wheelbase, axle configuration and site layout rather than from weighing capacity alone.

C3 and C6 Load Cell Options

Load cells are one of the most important components of an electronic truck scale because they convert the mechanical load applied to the platform into an electrical weighing signal.

Fangda weighbridge systems can be configured with C3 or C6 load cells according to the required weighing performance and application.

The load cell configuration can also be selected together with the platform structure, junction box, indicator and environmental protection requirements.

For outdoor installations, IP68-rated load cells can be specified where appropriate, particularly for sites exposed to rain, dust and other harsh operating conditions.

Pitless or Shallow Pit Installation

A 100 ton weighbridge can be configured for different foundation and installation conditions.

Pitless Weighbridge

A pitless truck scale is installed above ground and normally uses approach ramps on both sides of the platform.

This configuration can simplify drainage and routine inspection and is often suitable where sufficient site space is available.

Shallow Pit Weighbridge

A shallow-pit configuration places the weighing platform closer to ground level.

This can be useful when site layout, vehicle access or available space makes above-ground ramps less desirable.

The foundation type should be selected according to local soil conditions, drainage, vehicle traffic, available construction space and civil engineering requirements.

100 Ton Weighbridge for Unattended Weighing

For high-volume weighing operations, the 100 ton weighbridge can be integrated into an unattended truck weighing system.

An unattended configuration can combine:

• Automatic license plate recognition

• RFID vehicle identification

• Infrared positioning sensors

• Traffic lights

• Automatic barriers

• Cameras and video monitoring

• Digital weighing software

• Automatic data recording

• Ticket printing or digital weighing records

The weighing platform and load cells remain the core measurement system. The automation layer connects vehicle identification, positioning, weighing and data management into a single workflow.

This configuration is particularly useful for logistics parks, mining sites, quarries, industrial facilities and other locations where trucks need to be weighed frequently.

See a real 100 ton unattended weighing installation →

3×12m 100-ton unattended weighing system‍

Applications of a 100 Ton Truck Scale

Mining and Quarrying

Mining and quarry sites often require heavy-duty vehicle weighing for haul trucks and bulk material transportation.

A 100 ton weighbridge can be configured according to the vehicle type, traffic volume, environmental conditions and required platform length.

For larger mining vehicles or heavier operating conditions, Fangda also manufactures weighbridges in capacities up to 200 tons.

Construction

Construction projects use truck scales to measure incoming and outgoing materials such as aggregate, sand, gravel, concrete materials and construction waste.

A 100 ton truck scale can provide vehicle weight data for material management, transportation records and site logistics.

Logistics and Transportation

Logistics facilities can use 100 ton weighbridges to record gross vehicle weight and support cargo management.

For high-throughput operations, the system can be integrated with automatic vehicle identification and weighing software.

Ports and Industrial Facilities

Industrial plants, warehouses, terminals and ports may require vehicle weighing as part of receiving, dispatching, inventory control or material transfer operations.

Platform dimensions and weighing capacity can be customized according to the vehicles and cargo handled at the site.

See how a 100 ton weighbridge is used in real projects →

3×16m 100-ton weighbridge at China Railway ‍

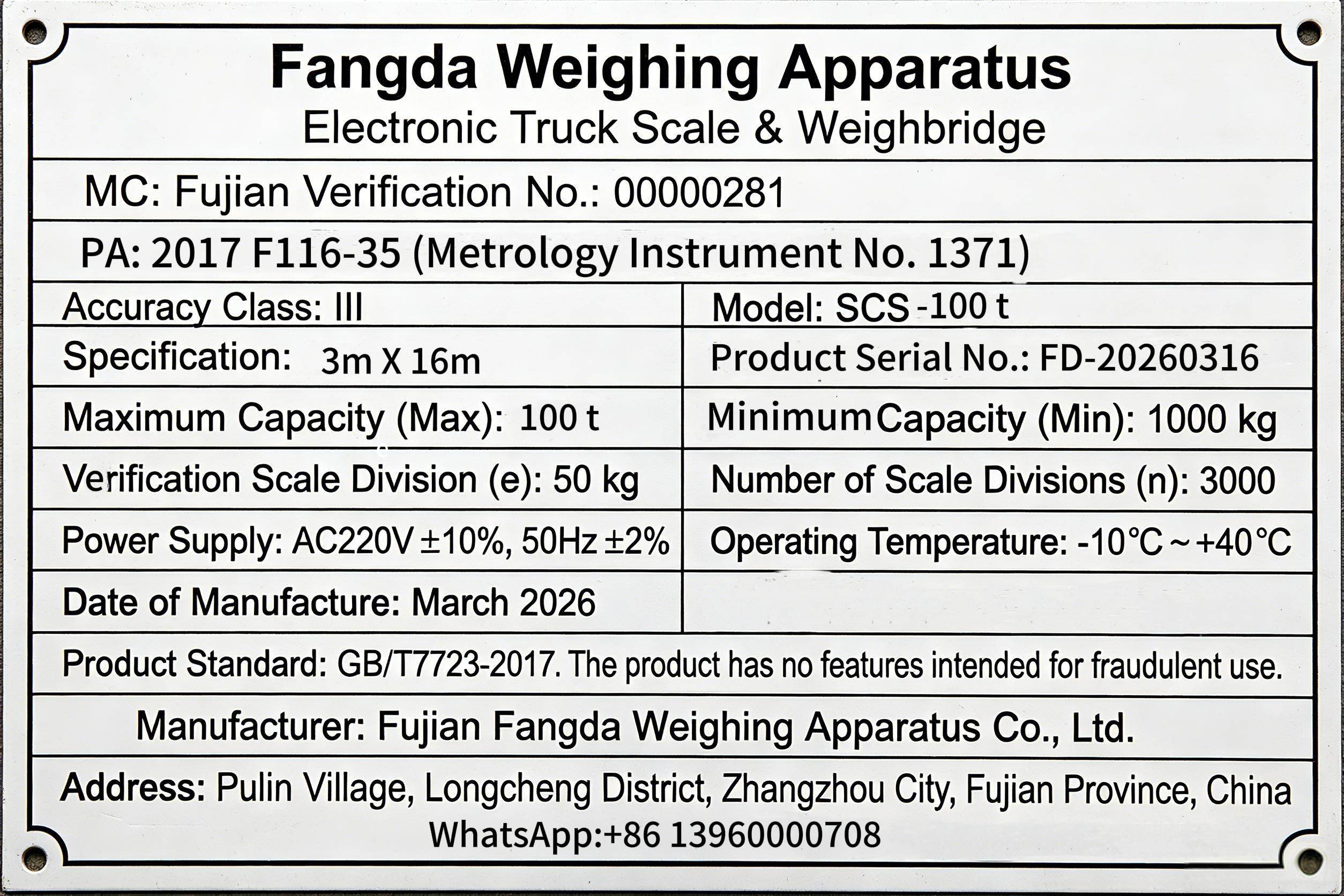

100 Ton Weighbridge Technical Specifications

Final specifications should be confirmed according to the vehicle type, platform dimensions, local regulations and project requirements.

100 Ton Weighbridge Installation

A truck scale is only as reliable as the complete weighing installation.

Before production, the project should confirm:

1. Maximum gross vehicle weight

2. Vehicle dimensions and wheelbase

3. Number and configuration of axles

4. Daily weighing frequency

5. Platform length and width

6. Pitless or pit installation

7. Foundation and drainage conditions

8. Local electrical requirements

9. Required weighing accuracy

10. Legal-for-trade certification requirements

11. Environmental conditions

12. Whether unattended weighing is required

Fangda can provide customized platform configurations according to the project requirements.

100 Ton Weighbridge for Harsh Environments

Truck scales installed in mines, quarries, ports and outdoor industrial facilities can be exposed to dust, rain, humidity, vibration and repeated vehicle impact.

For these environments, the weighing system should be configured according to actual site conditions.

Possible configurations include protected load cells, corrosion-resistant treatment, suitable foundation design and appropriate electrical protection.

For mining and quarry applications, the structural design should also consider repeated heavy vehicle traffic and off-center loading.

100 Ton Weighbridge Manufacturer

Fangda Weighing Instruments is a professional manufacturer and exporter of electronic truck scales, weighbridges, axle scales and intelligent weighing systems.

The company's current product range covers truck scales and weighbridges from 30 tons to 200 tons, with applications in logistics centers, ports, mines, quarries, waste management stations and industrial weighing sites.

Fangda also provides customized and unattended weighing configurations for projects requiring automated vehicle identification and data management.

Request a Quote for a 100 Ton Weighbridge

Every truck scale project is different.

To recommend the correct 100 ton weighbridge configuration, please provide the vehicle type, required platform size, installation method, expected daily traffic and destination country.

Fangda can then confirm the suitable weighbridge structure, load cells, indicator, foundation configuration and optional unattended weighing system.

Contact Fangda for a 100 ton weighbridge quotation and customized technical proposal.

100 Ton Weighbridge FAQ

1. What is a 100 ton weighbridge?

A 100 ton weighbridge is a vehicle weighing system designed to measure trucks and other vehicles with a maximum weighing capacity of 100 tons. It consists primarily of a steel weighing platform, load cells, junction box and digital weighing indicator.

2. What vehicles can be weighed on a 100 ton truck scale?

A 100 ton truck scale can be configured for trucks, trailers, construction vehicles and other heavy vehicles whose gross weight falls within the scale's rated capacity. The platform length should be selected according to the vehicle dimensions and axle configuration.

3. What platform sizes are available for a 100 ton weighbridge?

Fangda supports customized platform dimensions. Common configurations include 3 × 12 m and 3 × 16 m, while other lengths and widths can also be manufactured according to vehicle and site requirements.

4. Is the 100 ton weighbridge available with U-beam construction?

Yes. Fangda's heavy-duty weighbridge range uses high-strength U-beam steel structures for applications from 30 tons to 200 tons, including 100 ton configurations.

5. Can I choose C3 or C6 load cells?

Yes. Fangda's truck scale configurations can use C3 or C6 load cells according to the required weighing performance and application.

6. Can a 100 ton truck scale be installed without a pit?

Yes. A pitless configuration is available. Pitless weighbridges are installed above ground and normally use ramps for vehicle access.

7. Can a 100 ton weighbridge be used in a mining site?

Yes. A 100 ton weighbridge can be configured for mining and quarry applications. The final structure, load cells, protection and platform dimensions should be selected according to the vehicles, traffic frequency and environmental conditions.

8. Can the 100 ton truck scale operate unattended?

Yes. Fangda can integrate the weighbridge into an unattended weighing system using technologies such as RFID, license plate recognition, infrared positioning, automatic barriers, cameras and weighing software.

9. Can the 100 ton weighbridge be customized?

Yes. Platform dimensions, installation method, load cells, weighing indicator, automation system and other configuration requirements can be customized according to the project.

10. What is the accuracy of a 100 ton weighbridge?

Fangda's standard configuration is designed to comply with OIML R76 Class III requirements. The final legal-for-trade accuracy and certification requirements depend on the destination market and specific project.

11. How long does it take to manufacture a 100 ton weighbridge?

The current Fangda product information indicates a typical delivery period of approximately 15–30 days for the referenced customized weighbridge configuration. The actual lead time should be confirmed according to platform size, configuration, quantity and production schedule.

12. Does Fangda provide the foundation?

Foundation requirements depend on the installation configuration and project location. Fangda can provide the technical requirements for conventional concrete foundations and other installation configurations, while local civil construction requirements should be confirmed for the project.

13. Can the weighbridge connect to ERP software?

Yes. Fangda's unattended weighing configuration can support system integration and network-based data management for applications that require connection with existing business or ERP systems.

14. Is an IP68 load cell available?

Yes. IP68-rated load cells can be specified for applications where additional protection against water and environmental exposure is required.

15. What information is needed to quote a 100 ton weighbridge?

For an accurate quotation, provide the required capacity, platform size, vehicle type, installation method, destination country, expected weighing frequency and whether unattended operation is required.

16. Can Fangda supply a 100 ton weighbridge for export?

Yes. Fangda manufactures and exports truck scales and weighbridges for overseas projects and provides customized configurations for different site conditions and markets.

17. What is the difference between a 100 ton weighbridge and a 120 ton weighbridge?

The main difference is the rated weighing capacity. The appropriate model should be selected according to the maximum gross vehicle weight, operating conditions and local weighing requirements rather than simply choosing the highest available capacity.

18. Can a 100 ton weighbridge be used for legal-for-trade weighing?

It can be configured for applications requiring regulated trade weighing, but the applicable certification, verification and metrology requirements depend on the destination country and intended use. These requirements should be confirmed before ordering.

19. How much does a 100 ton weighbridge cost?

The price depends on platform size, structure, load cell configuration, installation type, automation, certification, shipping and other project requirements. Fangda therefore quotes 100 ton weighbridges according to the actual configuration rather than using one fixed price.

20. How do I choose the correct 100 ton weighbridge?

Start with the maximum gross vehicle weight and vehicle dimensions, then determine platform size, load cell configuration, installation type, weighing frequency, environmental conditions and automation requirements. Fangda can recommend a configuration based on these project parameters.

‍

View Fangda's weighbridge installation projects →‍

3×16m 100-ton Weighbridge Project at Liuao Seaside Wharf, Zhangzhou‍

‍

Need a 100 Ton Weighbridge for Your Project?

Tell us your required platform size, truck type, installation method and destination country. Fangda will recommend the appropriate 100 ton truck scale configuration and provide a quotation.
